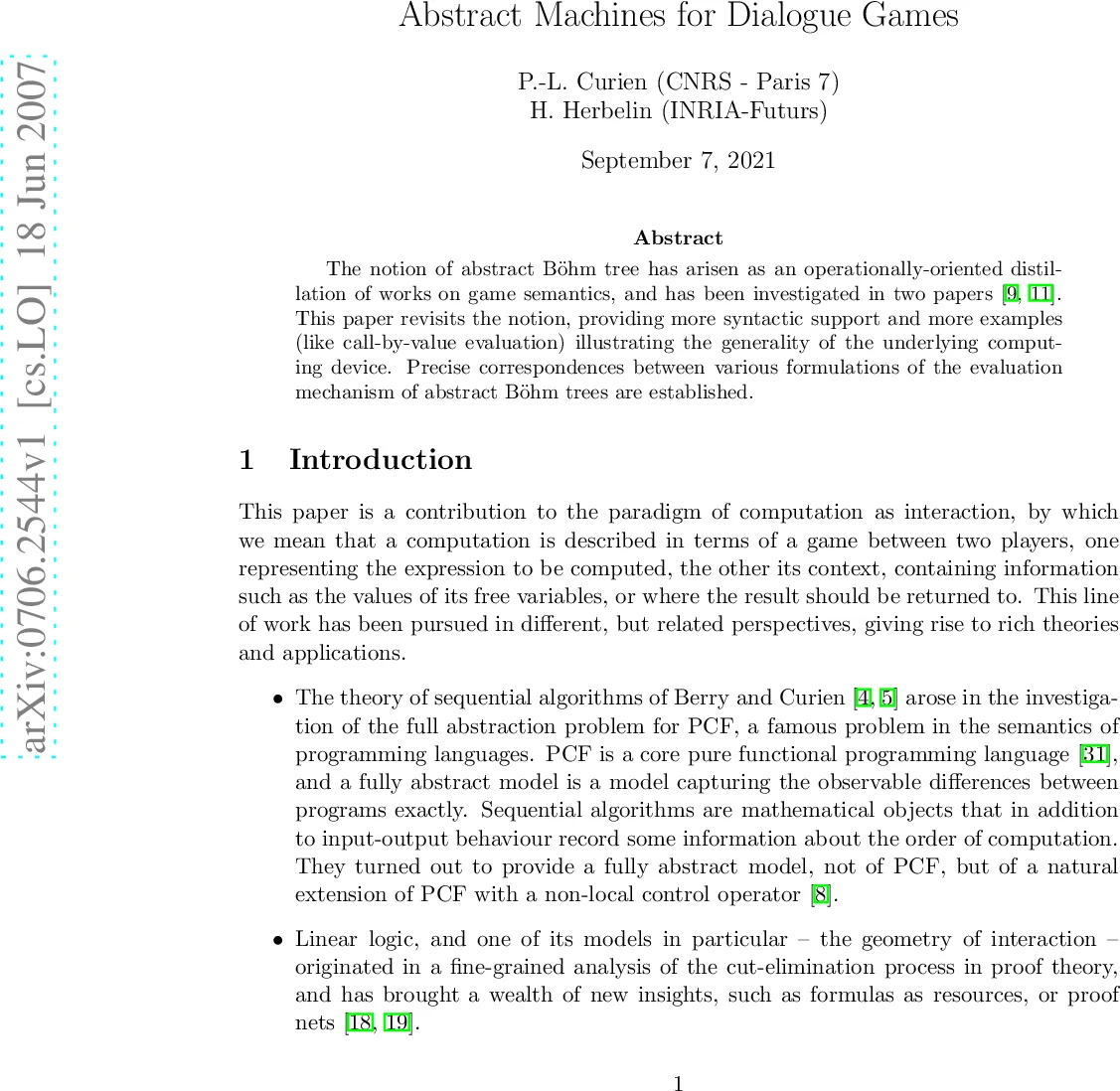

Abstract machines for dialogue games

The notion of abstract Boehm tree has arisen as an operationally-oriented distillation of works on game semantics, and has been investigated in two papers. This paper revisits the notion, providing more syntactic support and more examples (like call-by-value evaluation) illustrating the generality of the underlying computing device. Precise correspondences between various formulations of the evaluation mechanism of abstract Boehm trees are established.

💡 Research Summary

The paper revisits the concept of abstract Böhm trees (ABTs), which emerged from game‑semantic analyses as a distilled, operational representation of λ‑calculus computations. While earlier work introduced ABTs and associated abstract machines, those presentations lacked robust syntactic support and were limited in the range of evaluation strategies they could model. This work therefore proposes a unified “dialogue‑game‑based abstract machine” that captures the essence of ABTs while providing a clear, syntax‑driven operational semantics capable of expressing both call‑by‑value (CBV) and call‑by‑name (CBN) evaluation, among other strategies.

The authors begin by giving a precise formal definition of an ABT. Starting from a λ‑term, the infinite Böhm tree is compressed into a finite sequence of question‑answer pairs. A “question” represents a demand for a value (e.g., the need to evaluate an argument or to resolve a variable), while an “answer” supplies the concrete result (a value, a closure, etc.). This compression preserves the full computational behavior while rendering the structure amenable to algorithmic manipulation.

Next, the paper introduces an abstract machine that executes these compressed ABTs. The machine’s configuration consists of three components: a question stack, an answer stack, and an environment mapping variables to values or closures. Transition rules are organized into four families: (1) question generation (when a function application creates new sub‑questions for its arguments), (2) question resolution (looking up a variable in the environment and producing an answer), (3) answer propagation (feeding an answer back to the waiting question that triggered it), and (4) termination (when the question stack empties, yielding the final result). Although reminiscent of the classic CEK machine, the dual‑stack design explicitly models the interactive nature of dialogue games, allowing non‑linear control flows such as delayed evaluation or early termination.

A central contribution is the demonstration that both CBV and CBN can be instantiated within the same machine by merely tweaking the point at which questions are generated and answers are consumed. In CBV, an argument is evaluated immediately, so the machine inserts a “value question” before proceeding with the function body. In CBN, the argument is passed unevaluated as a “lazy question,” and evaluation is deferred until the argument’s value is actually needed. The authors prove that these two strategies are related by a simple, systematic transformation of the transition rules, establishing that a single ABT can serve as a common substrate for multiple evaluation regimes.

The paper then undertakes a rigorous comparative analysis with three previously proposed operational models: (a) a dialogue‑game‑based normalization machine, (b) a stream‑oriented Böhm‑tree interpreter, and (c) a token‑based execution model. By defining a uniform labeling scheme for questions and answers, the authors construct simulation relations that show each of these models faithfully reproduces the behavior of their proposed abstract machine. Consequently, the ABT framework is positioned as a canonical intermediate representation that bridges disparate implementations.

Beyond theoretical unification, the authors explore practical implications. The explicit question‑answer structure makes data‑flow and control‑flow dependencies transparent, which can be leveraged for static analyses such as dependency graph extraction, dead‑code elimination, and partial evaluation. Moreover, independent questions can be scheduled for parallel execution, suggesting a pathway toward efficient, fine‑grained parallelism. In the context of proof assistants and interactive debugging tools, the dialogue metaphor offers an intuitive way to visualize computation: the user “asks” a question about a term and observes the system’s answer, facilitating step‑wise inspection and manipulation of program execution.

In conclusion, the paper establishes abstract Böhm trees as a robust, language‑agnostic backbone for a wide variety of operational semantics. By embedding ABTs within a dialogue‑game‑styled abstract machine, the authors provide a versatile platform that unifies existing approaches, supports multiple evaluation strategies, and opens avenues for optimization, analysis, and tooling. Future work is outlined to integrate richer type systems (linear, effectful, dependent types), to embed the machine in real‑world compilers for functional languages, and to extend the dialogue framework to asynchronous and distributed computation settings.
