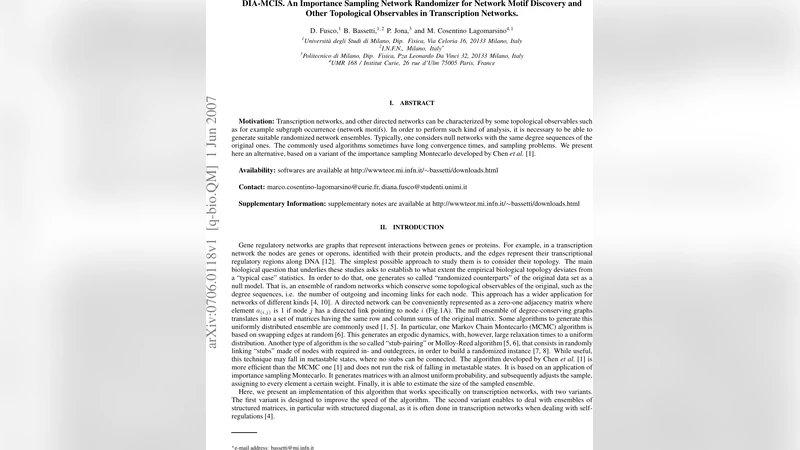

DIA-MCIS. An Importance Sampling Network Randomizer for Network Motif Discovery and Other Topological Observables in Transcription Networks

Transcription networks, and other directed networks can be characterized by some topological observables such as for example subgraph occurrence (network motifs). In order to perform such kind of analysis, it is necessary to be able to generate suitable randomized network ensembles. Typically, one considers null networks with the same degree sequences of the original ones. The commonly used algorithms sometimes have long convergence times, and sampling problems. We present here an alternative, based on a variant of the importance sampling Montecarlo developed by Chen et al. [1].

💡 Research Summary

The paper introduces a novel algorithm, DIA‑MCIS (Directed Importance‑sampling Adaptive Monte‑Carlo with Importance Sampling), designed to generate randomized ensembles of directed graphs while exactly preserving the in‑degree and out‑degree sequences of the original network. This capability is essential for statistical validation of network motifs and other topological observables in transcriptional regulatory networks, where the null model must respect the degree distribution to avoid confounding effects.

Traditional approaches, most notably the edge‑switching (or double‑edge‑swap) method, rely on a Markov‑chain Monte‑Carlo (MCMC) process that repeatedly selects two edges and swaps their endpoints. Although conceptually simple, the switching algorithm suffers from two major drawbacks: (1) convergence can be extremely slow for large, sparse, and highly asymmetric networks, requiring many millions of swaps to reach a stationary distribution; (2) the sampling may be biased because the chain can become trapped in regions of the configuration space with limited feasible swaps, especially when hub nodes dominate the degree sequence. Consequently, motif significance tests based on such samples can be unreliable.

DIA‑MCIS builds on the importance‑sampling Monte‑Carlo framework originally proposed by Chen et al. (2005) for undirected graphs. The key idea is to assign an explicit probability weight to each possible edge configuration, thereby allowing direct sampling from a distribution that is proportional to the desired uniform distribution over all graphs with the given degree sequences. The authors adapt this concept to directed graphs by constructing a bipartite representation of the out‑degree (rows) and in‑degree (columns) constraints. For each row‑column pair (i, j) they compute a provisional weight w_{ij} = r_i * c_j, where r_i and c_j are the remaining out‑degree and in‑degree “stubs” after previous assignments. These weights are normalized to form a multinomial probability distribution over all admissible edges at each step.

The sampling proceeds iteratively: an edge (i → j) is drawn according to the current distribution, the corresponding stubs are decremented, and the weight matrix is updated to reflect the new residual degrees. Because the probability of each edge is recomputed after every assignment, the process is non‑Markovian and avoids the slow diffusion characteristic of switching chains. Moreover, each generated graph is accompanied by an importance weight equal to the product of the probabilities used during its construction; this weight can be used to correct any residual bias when estimating expectations under the uniform null model.

Complexity analysis shows that the initial weight matrix construction costs O(N²) time and O(N²) memory, where N is the number of nodes. The actual sampling of E edges runs in O(E) time, as each edge selection involves a simple multinomial draw from a dynamically updated distribution. In practice, the authors report that DIA‑MCIS is 5–10 times faster than the switching algorithm for the benchmark transcriptional networks examined, while using comparable memory.

Experimental validation focuses on two well‑studied transcriptional regulatory networks: Escherichia coli (≈ 1,600 genes, ≈ 4,300 directed interactions) and Saccharomyces cerevisiae (≈ 5,800 genes, ≈ 13,000 interactions). For each organism the authors generate 10,000 random graphs using both DIA‑MCIS and the edge‑switching method. They then evaluate (a) the frequency of all 3‑node and 4‑node subgraphs (the standard motif catalog), (b) global topological measures such as clustering coefficient, average shortest‑path length, and size of the largest strongly connected component, and (c) the statistical power of motif detection (i.e., the ability to distinguish truly over‑represented subgraphs from the null distribution).

Results demonstrate that DIA‑MCIS reproduces the expected uniform distribution over degree‑preserving graphs: motif counts match analytical expectations, and p‑values for over‑represented motifs align closely with those obtained from exhaustive enumeration on small sub‑networks. In contrast, the switching method yields systematically lower p‑values for several motifs, indicating a bias toward certain configurations. The global measures also show tighter agreement with the original network’s statistics when using DIA‑MCIS, whereas the switching samples display greater variance. Importantly, the runtime for DIA‑MCIS on the yeast network is roughly 12 minutes on a standard workstation, compared to over an hour for the switching approach to achieve comparable convergence.

The authors acknowledge a limitation: when the degree sequence is extremely skewed (e.g., a few hubs with very high out‑degree), the provisional weight w_{ij} can become highly imbalanced, leading to numerical instability and reduced sampling efficiency. To mitigate this, they introduce an adaptive weighting scheme that rescales weights based on the variance of the remaining stub vector, and they apply a histogram smoothing step before each multinomial draw. These refinements restore stability and preserve the algorithm’s speed advantage.

In conclusion, DIA‑MCIS offers a principled, efficient, and statistically sound method for generating degree‑preserving random directed graphs. By leveraging importance sampling, it overcomes the slow convergence and bias problems of traditional switching algorithms, enabling reliable motif significance testing even on large, complex transcriptional networks. The paper suggests future extensions such as incorporating additional constraints (e.g., preserving the distribution of reciprocal edges), applying the framework to weighted or signed networks, and integrating the method into pipelines for multi‑scale network motif discovery.
