Analysis of Avoided Transmission Through Decentralized Photovoltaic and Battery Storage Systems

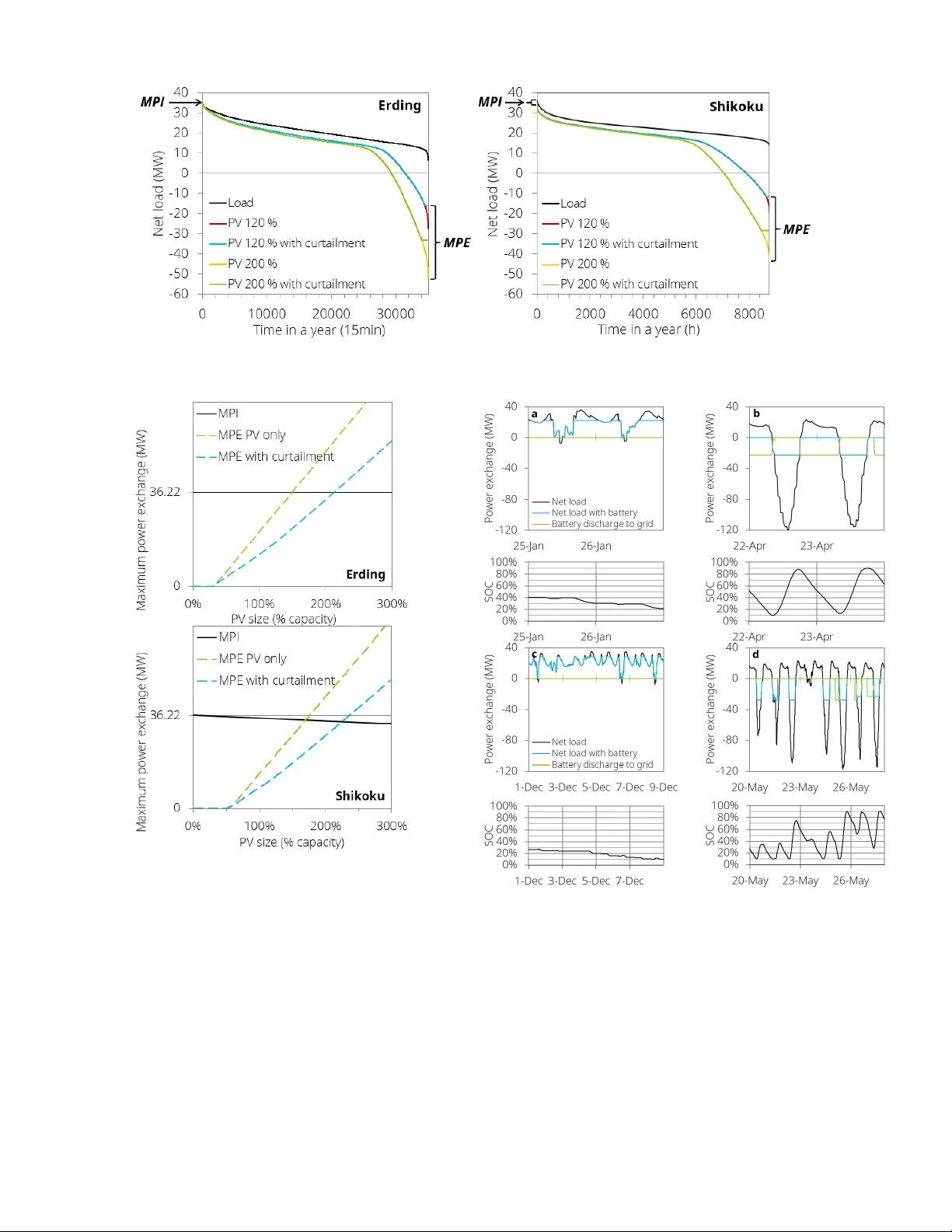

IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 1 Analysis of A v oided T ransmission Through Decentralized Photo v oltaic and Battery Storage Systems Shigeyoshi Sato Faculty of En vironment and Natural Resources, Uni versity of Freiburg, Germany Anke W eidlich Department of Sustainable Systems Engineering, Uni versity of Freiburg, Germany Email: anke.weidlich@inatech.uni-freibur g.de Abstract —Decentralized renewable energy systems can be low- carbon power sources, and promoters of local economies. It is often argued that decentralized generation also helps reducing transmission costs, as generation is closer to the load, thus utilizing the transmission system less. The resear ch presented here addresses the question whether or not, or under what circumstances this effect of avoided transmission can actually be seen for a community-operated cluster of photovoltaic (PV) power plants in two sample locations, one in Germany and one in Japan. For the analysis, the newly developed instrument of MPI-MPE diagrams is used, which plot the maximum power import (MPI) and maximum power export (MPE) in relation to the reference case of no local generation. Results reveal that for moderately sized PV systems without battery storage, avoided transmission can be seen in the Japanese model location, but not in Germany . It was also found that an additional battery storage can lead to avoided transmission in both locations, even for large sizes of installed PV capacity . Index T erms —Renewable energy , PV integration, battery man- agement, multi-objective linear programming, grid usage. N O M E N C L A T U R E λ 1 , λ 2 Objectiv e weighting factor C Nominal storage capacity of the battery (MWh) C h t Charging po wer at time t (MW) D G t Discharging po wer to the grid at time t (MW) D S t Discharging po wer for self-consumption (MW) t T ime interval (h or 15 min) P max Maximum power of grid interaction (MW) RL t Residual load at time t (MW) S G t Surplus generation at time t (MW) S t Storage charge lev el at time t (MWh) I . I N T RO D U C T I O N Decentralized renewable po wer generation gains much at- tention as an en vironmentally friendly power source and a promoter of local economies. One additional advantage often c  2019 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other uses, in any current or future media, including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works. DOI 10.1109/TSTE.2019.2946446, https://ieeexplore.ieee.or g/document/8863430 advocated is that decentralized renewable electricity genera- tion helps av oiding infrastructure cost, because the transmis- sion system is used less, as generation is geographically close to the consumption [1]. Howe ver , in many cases, variable renew able energy hardly reduces the annual net peak load [2]. The authors of [3] quantitativ ely illustrate that grid interaction can decrease with the introduction of on-site photovoltaic (PV) systems in Australia, but show the ef fect only for one case with a fixed PV size. With larger PV sizes, increased generation could cancel out the avoided transmission and even require an enhancement of grid infrastructure for exporting the surplus electricity . Therefore, it is interesting to study ho w avoided transmission depends on the PV size, and how it changes if battery storage is added to the local energy system. The potential of combinations of PV systems with battery storage has been widely studied. [4]–[6], among others, sho w how cost savings can be achieved, and self-consumption rates are increased with larger battery systems operated along with PV plants. The benefit of PV and battery systems for distribution system operators (DSOs) due to peak shaving has been demonstrated by [7]–[9], among others. Se veral studies also analyzed the power flow at the distribution transformer for ev aluating the grid interaction induced by distributed PV system, e. g. [9]–[11]. The authors of [3] and [12] focused their studies on single households, [13] and [14] looked at res- idential areas, and [10] studied an entire village of prosumers with PV systems. [14] specifically address the relationship between maximum power and PV size, which is not reported in most other studies. They derive values of annual maximum residual load (MRL) and annual maximum surplus generation (MSG) from net load duration curves of three residential areas equipped with different sizes PV generators. Similar approaches had been previously followed by [2] and [15], but for studying the effects of PV usage at a country-wide le vel. This work aims at comprehensively estimating the impact of decentralized PV systems on transmission grid usage. A PV plant was chosen as a representativ e system for renewable power generators, because PV has been intensiv ely studied [16], [17], and is widely implemented world-wide. T wo model communities hav e been analyzed which have very different load and solar irradiation patterns. T wo cases were studied for comparison, i. e. PV -only systems and PV systems combined IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 2 with a battery storage. The marginal change in transmission flows related to the studied systems is not directly ev aluated. Instead, the power exchange at the transformer connecting the model communities to the public grid is taken as a proxy for transmission requirements related to serving the community’ s electricity demand. The work builds on the concepts of MRL and MSG intro- duced by [14], and uses them to form the newly proposed MPI-MPE diagrams, which plot the annual maximum power import (MPI, in MW) and annual maximum power export (MPE, in MW) that result from the introduction of a local PV system with or without an additional battery storage into the community’ s local grid. This new instrument is a very insightful and yet simple visualization of the effect that different PV sizes have on the exchange of power at the community’ s connection point to the public grid. Through this, transmission reductions from decentralized generation can be analyzed ov er a range of PV sizes in an intuitive manner . T o the best kno wledge of the authors, similar tools do not exist in the literature, so the proposed MPI-MPE curves extend the state-of-the-art of transmission reduction analysis for the domain studied here. I I . T H E M E T H O D The power exchange of a community at a distribution trans- former that connects it to the public power grid is analyzed here. The higher of the two values MPI and MPE as introduced before is taken as an indicator of how much the community uses the upstream (including the transmission) system for satisfying its electricity demand. If local generation reduces the maximum power exchange, this is referred to as av oided transmission. It is argued that the cost of transmission is mainly influenced by the infrastructure in vestment, and less by its operation. Therefore, regarding the maximum power exchange rather than the total energy exchanged is most relev ant, as infrastructure is usually dimensioned so that it can always serve the peak load, or absorb the peak surplus generation. The load consists of priv ate households, industrial con- sumers, a few agricultural farms and further consumers that form a model community . The community can always draw any required power from the public grid and also feed its surplus po wer into the grid. In Case 1, on-site PV modules are assumed to be installed. In Case 2, PV plants are installed along with a centralized battery (or sev eral decentralized batteries that are centrally controlled and can therefore also be modeled as one unit). In the latter case, the storage capacity is varied in the range of 1.5 – 4.5 kWh storage capacity per kW p of installed PV power (here referred to as kWh/kW PV ). MPI and MPE are calculated on the basis of the net load, i. e. the load minus the PV generation. The net load is first separated into positiv e values – the residual load RL – and negati ve values – the surplus generation SG – of the community . Of this, following [14], the annual maximum RL value constitutes the MRL, and the annual maximum SG value is the MSG (both in MW). These values are then calculated for various sizes of the PV modules. W ith the values computed, the proposed MPI-MPE diagram can be developed. Such a diagram is ex emplarily depicted in Fig. 1. In this graph, the solid line indicates MPI and the dotted line indicates MPE at a certain PV size. On the abscissa, the PV size is indicated in percent of the peak load. The range indicates the PV size for which transmission reductions are achiev ed. It is limited by the intersection of MPE and the power exchange with the feeder system when no local generation is present. The latter is marked as reference MPI in Fig. 1. The degree is the vertical distance between the reference MPI and the intersection of MPE and MPI. It indicates the decrease in maximum power exchanged at the transformer which can be achiev ed at best for an ideal PV size. Fig. 1. MPI-MPE diagram In Case 1, MRL and MSG are equal to the annual MPI from and MPE to the public grid, respectiv ely . In Case 2, optimum battery operation is determined through a multi-objectiv e lin- ear program (MOLP), following a similar approach by [12]. The MOLP is solved for the scheduling horizon T of one year applying a rolling horizon approach [18] with a control horizon of 24 hours and a prediction horizon 144 hours. The 24-hour control horizon always begins at 9:00 a.m. of a day . It was found that the optimum computed for an ov erall horizon of one week (168 hours) does not differ from that for longer periods, so this constitutes the chosen number of time steps analyzed in each step of the rolling horizon procedure. The input data are the load and PV generation profiles for one year in the tar get community . They form the two time series of residual load (positiv e net load), RL t ≥ 0 ∀ t = 1 , 2 , ..., T , and surplus generation (absolute values of negati ve net load), S G t ≥ 0 ∀ t = 1 , 2 , ..., T , for time steps t . These time series are based on historical data, so perfect foresight is assumed here, and forecast uncertainty is neglected. The objectiv e function is defined as the minimization of the maximum absolute power exchanged between the community and the public grid, P max (Eq. 1). In the objectiv e function, λ 1 and λ 2 are objective weighting factors, and 0 ≤ λ 1 , λ 2 ≤ 1 . The objectiv e function defined here discourages simultaneous battery discharging to the grid and charging. The given model with λ 1 = 10 − 3 and λ 2 = 10 − 6 puts high emphasis on the main goal to minimize the absolute power exchange, while completely avoiding simultaneous charging and discharging. The battery is characterized by its nominal capacity C (in MWh) and its state-of-charge S t (in MWh), with the IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 3 initial storage le vel S 0 . The state-of-charge can take any value between 0.1 and 0.9 times the storage capacity (2), which av oids high battery aging [5], [7]. The char ging/discharging power at time t , C h t , can take any value of surplus generation (3). No additional technical constraints on charging and discharging power are assumed. Although this may seem to overestimate av oided transmission, optimization outputs show that the highest charging rates were observed for the largest batteries reported in Sections III and IV, and that the observed power -to-energy ratios of the battery in these cases were in the range of 0.15 – 0.17 kW/kWh. Many battery systems currently av ailable on the market offer some flexibility in choosing the maximum charging/discharging power in relation to the energy storage capacity . An extensiv e market ov ervie w of industry-scale batteries in [19] sho ws that the majority of standard configurations for offered battery systems are in the range of 0.2 – 1.5 kW/kWh, with less than 10 % having a po wer-to-ener gy ratio below 0.2. Therefore, we assume that charging/dischar ging po wer is not a limiting factor for the battery sizes considered in the current work. Similar to [20] and [21], no constraints were introduced that limit battery discharge to the public grid. Consequently , the battery can be discharged e ven beyond local demand, typically at night, so as to free storage capacity for the next surplus period, which usually happens during summer days [6]. Howe ver , in order to minimize grid interaction, battery discharging for feeding it into the grid at time step t , D G t , is in the following distinguished from discharging for self- consumption, D S t . This allows for minimizing discharge to the grid while encouraging the usage of stored energy for self- consumption. Energy losses during charging and discharging are ne- glected. The resulting energy balance is giv en by (4), where ∆ t is the duration of one time interval. (5) and (6) limit both imports from the grid, RL t − D S t , and exports to the grid, S G t − C h t + D G t , to P max , which is minimized in the objectiv e function. The resulting optimiza- tion problem is formulated as follows: min z = (1 − λ 1 − λ 2 ) P max − λ 1 X t D S t + λ 2 X t D G t (1) s. t. (all constraints ∀ t = 1 , 2 , ..., T ) 0 . 1 ≤ S t ≤ 0 . 9 (2) C h t ≤ S G t (3) S t = S t − 1 + ( C h t − D S t − D G t ) · ∆ t (4) RL t − D S t ≤ P max (5) S G t − C h t + D G t ≤ P max (6) P max , D G t , D S t , C h t ≥ 0 (7) The problem was solved with the Matlab function linprog and takes in the order of one minute to compute per PV/battery size combination. Finally , MPI and MPE are calculated from the optimization outcome as the maximum residual load after storage dischar ging, and the maximum net surplus after charging, respecti vely (8, 9). M P I = max( R L t − D S t ) (8) M P E = max( S G t − C h t + D G t ) (9) I I I . C A S E S T U DY In this study , two model communities were considered. The first one is situated in the medium-sized city Erding in Germany . The second one is a similarly structured community in the region of Shikoku in Japan. Germany and Japan were chosen as sho wcases, because they hav e the first and the second largest PV penetration per capita in the world [22]. Erding and Shikoku were chosen due to their comparable population density , and for their comparable economic struc- ture, with an almost same distribution of gross value added among economic sectors [23], [24]. The model communities can be categorized as suburb areas where farms, factories, shops, offices, and residential buildings are mixed. Load data was obtained from the local DSO companies [25], [26]. The time resolution is 15 min for Erding, and one hour for Shikoku. The peak load recorded in Erding is 36.22 MW . Data of Shikoku was scaled to have the same peak load as Erding. Following the approach of [27] and [28], the PV generation profile for both locations were simulated with TRNSYS, using type194, which is a one-diode, five parameter model as dev eloped by [29], and applying tilted angles of the PV panels of 35 ◦ for Germany and 30 ◦ for Japan. For weather data, the reference year based on measurements between 1995 and 2012 for Erding was taken from [30]. For Shikoku, data was obtained from [31] (for the location T akamatsu), which is based on measurements between 1990 and 2009. The resulting 15 min / hourly power generation profiles of single PV modules (100 W) in the year 2017 are shown in Fig. 2. It has to be mentioned that the time resolution determines the degree of precision for the absolute peak of power exchange from/to the community . Higher absolute power values can occur within one 15 min or 1 h period, while the given data only provides average power per time interval. Ho we ver , as a whole community is considered here, load curv es are smoother than for single consumers’ curves, therefore the time resolution is considered suf ficient for the analysis provided here. The generation profiles rev eal noticeable differences be- tween the two considered locations. The profile in Erding has greater seasonal v ariation, with less power output occurring during winter . The generation in Japan, in contrast, is more ev enly distributed throughout the year . During summer , daily PV generation peaks are often higher in Erding than in Shikoku, which is due to the different temperature levels in both locations that have an ef fect on PV performance. In addition, thanks to longer lengths of daytime in German summer , PV plants can harvest more sunlight per day , so more electricity is generated during an av erage summer day in Erding than in Shikoku. The integral over the power profile shows a generation of 106 kWh in Erding and 127 kWh in Shikoku, respecti vely , from a PV system with nominal capacity of 100 W p . Power IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 4 Community load 100 % capacity size 100 % energy size Peak power Energy demand Peak power Energy generation Peak power Energy generation Erding 36.22 MW 183.8 GWh 36.22 MW p 38.37 GWh 173.6 MW p 183.8 GWh (31.98 MW actual peak) (= 480 % of the peak load; 153.3 MW actual peak) Shikoku 36.22 MW 196.8 GWh 36.22 MW p 46.05 GWh 154.8 MW p 196.8 GWh (nominal capacity; (= 428 % of the peak load; 32.33 MW actual peak) 138.2 MW actual peak) T ABLE I P OW E R A N D E N E RG Y BA L A N CE S I N E R D IN G A N D S H IK O KU Fig. 2. Power generation profiles in Erding (top) and Shikoku (bottom) for a 100 W PV plant and energy values for other plant sizes are summarized in T ab . I for both locations. In this table, the nominal capacity of the photov oltaic modules (in W p ) is expressed in two different ways. One definition puts the plant size in terms of percent of the peak load, following [5]. Consequently , the PV size of 100 % is equal to the community’ s peak load of 36.22 MW for both communities. Although the peak PV generation does not necessarily occur at the same time as peak consumption, this is a helpful value which can easily be determined for any community considered. The second definition takes the yearly aggregate PV generation as the reference. Following this reasoning, the 100 % energy size equals the PV plant size that allows a yearly aggregate generation equal to the community’ s yearly aggregate electricity consumption. It is observed that the latter PV size is 480 % of the peak load in Erding, and 428 % in Shikoku. This measure is, again, a helpful reference size which can easily be computed for any location. In all discussions that follow below , PV size values are always expressed in reference to the capacity size (i. e. peak load), if not stated otherwise. I V . R E S U LT S A N D D I S C U S S I O N In the following, results are presented for the two consid- ered cases individually . Findings for each case are compared between the two model locations Erding and Shikoku. A. Case 1 (PV Only) For the analysis of Case 1, the net power profile was calculated by subtracting PV generation from electrical load. The net load in Erding is depicted in Fig. 3 for an example PV size. Peak load occurs during winter , and the annual maximum of 36.22 MW was observed at 6:30 p.m. on 25 th January . No PV generation occurs at the time of the peak load (cp. Fig. 3c). Fig. 3b sho ws MSG v alues, with a maximum on 6 th May . MSG (42.4 MW) is higher than MRL, therefore grid interaction is increased in comparison to the reference situation without PV . Fig. 3. Power profiles for Case 1 (PV size 169 %) in Erding for a) whole year , b) May , c) January In Shikoku, grid interaction is lo west for a PV size of 169 %, as it will be shown later . Fig. 4 depicts the net load in Shikoku for this plant size. The peak load of 36.22 MW was observed at 4:00 p.m. on 24 th August. Fig. 4c sho ws that during peak load, the PV plants deliv er part of the supply , leading to a reduced MRL v alue of 34.33 MW . On the other hand, surplus was also observed, indicating exports to the public grid. The annual absolute maximum v alue of SG, as depicted in Fig. 4b, appeared at 11:00 on 23 rd April, with an MSG of 34.16 MW . Overall, grid interaction was reduced by 5.2 % (from 36.22 MW to 34.33 MW). In order to analyze the dependency of MSG and MRL on the PV size, ordered duration curves of the net load for different PV sizes are plotted in Fig. 5. The leftmost v alues of the curv es indicate the MRL, while the rightmost values gi ve the MSG for each analyzed size. As Case 1 in volves no further power control, MRL and MSG correspond to MPI and MPE values, IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 5 Fig. 4. Power profiles for Case 1 (PV size 169 %) in Shikoku for a) whole year , b) April, c) August respectiv ely . It can be observed that as PV size increases, MPI decreases only slightly in Shikoku, but MPE rises quickly . In Erding, MPI does not change at all with increasing PV sizes, and MPE decreases in a similar way as in Shikoku. Fig. 5 also depicts the case of curtailment, which is dis- cussed as an appropriate method for congestion management [32], [33]. The easiest implementation of curtailment is a fixed limit given as the percentage of the installed capacity up to which power can be fed into the grid. Any feed-in abov e the limit is curtailed. This is referred to as “static curtail- ment” [34]–[36] or “fixed curtailment” [37]. An alternati ve implementation is “dynamic curtailment / approach”. In the dynamic approach, generators are only curtailed in situations in which they actually contribute to grid congestion. While the static approach requires no information about the current network state, the dynamic approach requires a communication system, because PV generators have to receive the information about current grid state continuously . For simplicity , the static approach is considered here. It specifies that up to 5 % of annual energy which comes at the highest power can be curtailed. If this is applied, then MPE significantly decreases in comparison to the initial MSG, while MPI is equal to MRL. The relationship between maximum po wer peaks and PV size was e xtracted from the duration curves and summarized in Fig. 6 to form the MPI-MPE diagram. In Erding, the maximum power flux to/from is the same for any PV size between 0 and 149 %, without curtailing assumed. For any lar ger PV size, MPE increases above the reference of no PV generation. For Shikoku, it shows that the maximum po wer flux to/from the grid is less than 36.22 MW for a range of PV sizes up to 175 % without curtailment, and up to 235 % with the described 5 % curtailment. W ith no curtailment, the grid interaction reaches a minimum at a PV size of 169 %, corresponding to a 5.2 % reduction in relation to the reference setting without PV . In the case of curtailment, the grid interaction is minimized at a PV size of 224 %, where both MPI and MPE are 33.72 MW . This corresponds to a 6.9 % reduction of grid interaction. Thus, curtailment reduces transmission in terms of both range and degree. In summary , the ef fect of av oided transmission can be ob- served in Shikoku, but not in Erding, when only PV generators are installed. The difference between the two locations can be attributed to the de gree of coincidence of the load peak and PV generation. The daily load peaks in Erding tend to appear at the later afternoon between 5:00 and 7:00 p.m. in the winter season. At these times, the PV plants do not generate any power . In Shikoku, in contrast, the daily load peaks tend to appear in the early afternoon between 2:00 and 4:00 p.m. in the summer season. This coincides well with the PV generation profiles (Fig. 3c). B. Case 2 (PV and Battery) When battery storage is added to the PV systems, grid interaction decreases. The energy storage capacity of the battery is here quantified in relation to the PV peak ca- pacity in kWh/kW PV , as introduced earlier . Different PV sizes were combined with battery sizes of 1.5, 2.5, 3.5 and 4.5 kWh/kW PV . It was observed that the configurations that lead to the lo west po wer exchange with the public grid were at PV sizes of 426 % in Erding and 387 % in Shikoku, for the largest considered battery size of 4.5 kWh/kW PV . In the following, theses specifications are described in more detail for an illustration of the results. In Erding, a 4.5 kWh/kW PV battery at a PV size of 426 % has a storage capacity of 694 MWh (cp. numbers in T ab . I; 36 . 22 · 426% · 4 . 5 = 694 ). The annual net load profiles with and without battery are summarized in Fig. 7, along with the profile of discharging power to the grid ( D G t ) and the course of the state-of-charge S O C t . During the period shown in Fig. 7d, the whole allowable range from 10 % to 90 % of SOC was utilized. In contrast, the battery was almost empty during the period shown in Fig. 7c, which can be attributed to the scarcity of PV generation in winter . In Shikoku, a 4.5 kWh/kW PV battery at a PV size of 387 % has a storage capacity of 631 MWh. Power and SOC profiles for this configuration are summarized in Fig. 8. It was observed that the peaks in residual and surplus power profile are considerably reduced in the case with battery included, as compared to the PV -only cases. The timing of the highest power values also changed: While MRL and MSG for PV alone occurred in the end of January and beginning of April, respecti vely , MPI and MPE in the case with battery now appeared in the middle of December and end of April, respectiv ely . MRL (33.01 MW) at 6:00 p.m. on 23 rd January was reduced through battery discharging (cp. Fig. 8a), and MSG (102 MW) at 12:00 a.m. on 6 th April was reduced by battery charging (cp. Fig. 8b). Howe ver , not all peaks were eliminated. Some time intervals of high positi ve or negati ve net load remain even with a battery of 631 MWh. The value of MPI with battery is 17.96 MW , which occurs during nighttime in mid-December , as shown in Fig. 8c. In contrast, Fig. 8d illustrates that MPE with battery was 17.92 MW , which was observed during daytime to wards the end of April. Overall, the introduction of a 631 MWh battery decreased the grid interaction considerably from 102 MW to 17.92 MW . The dependency of MPI and MPE on PV and battery size is no w further inv estigated. Fig. 9 shows the MPI-MPE IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 6 Fig. 5. Duration curves of net load for Case 1 in Erding (left) and Shikoku (right) Fig. 6. MPI-MPE diagram of Case 1 in Erding (top) and Shikoku (bottom) diagram for fi ve different storage sizes. The black crosses indicate the point of minimum grid interaction for each battery size. The right ends of the abscissas (PV size) are 480 % for Erding and 428 % for Shikoku, corresponding to the respectiv e 100 % energy sizes (cp. T ab. I and its explanation). It can be observed that MPI curves decrease and MPE curves increase with larger PV size, until their point of intersection. Also, both MPI and MPE curves decrease with larger storage capacity , indicating gro wing transmission av oidance. While MPI decreases strictly monotonously before, and MPE in- creases strictly monotonously after the intersection point with growing PV size, the two curves do not show a monotonous characteristic at the respective other side of the intersection. Fig. 7. Power profiles for Case 2 (PV size 426 %, battery size 4.5 kWh/kW PV ) in Erding for the days when a) MRL, b) MSG, c) MPI with battery , and d) MPE with battery appeared This is because the higher absolute value of the two, MPI and MPE, is the constraining factor . It is therefore not important in terms of objectiv e function to also minimize the lower of the two values, so battery operation may be quite different for one PV size compared to another . For the battery sizes in vestigated, the minimum grid inter- action was 17.92 MW in Shikoku – which is less than half the value as in the case without PV – and 28.08 MW in Erding. In summary , it can be stated that both the degree and range of transmission av oidance proved to be smaller in Erding than IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 7 Fig. 8. Power profiles for Case 2 (PV size 387 % battery size 4.5 kWh/kW PV ) in Shikoku for the days when a) MRL, b) MSG, c) MPI with battery , and d) MPE with battery occurred in Shikoku for all battery sizes. Fig. 9 shows, e. g., that a 3.5 kWh/kW PV battery yields an av oided transmission range of 380 % PV capacity in Erding, while that range is beyond the 100 % energy size in Shikoku (i. e. 428 % capacity). This indicates that in Shikoku, smaller batteries allow integrating more PV without transmission enhancement needs compared to Erding. The difference between the two locations lies in the seasonal distribution of PV generation profiles. In Shikoku, PV generation is more ev enly distributed through the year (cp. Fig. 2), so sufficient generation is av ailable ev en in winter , and it can be used to shav e the RL peaks in winter (Fig. 8c). In contrast, PV generation in summer is lo wer than in Germany (Fig. 2) due to shorter daytimes and higher temperature. Therefore, SG peaks are less pronounced in Shikoku (Fig. 8d), resulting in a smaller MPE v alue. On the other hand, Erding has larger seasonal v ariation and consequently faces a lack of PV generation in winter , as it can be observed in Fig. 7c. Also, because PV generation in summer is intensiv e (Fig. 2), S G peaks cannot easily be shaved (Fig. 7d). Relating the findings from Case 2 to the discussion of curtailing in Case 1 (cp. Fig. 5), it must be stated that both options – battery storage and curtailment – av oid transmission in terms of range and degree. While curtailing comes at the cost of loosing a small part of the PV generation, batteries require additional in vestment. Costs must be set in relation to the savings that could be achieved through a voided trans- mission. The latter is very difficult to estimate; if only the transformer cost is considered, halving the initial size in the Shikoku example could reduce inv estment cost by an order of 200 kEUR [38] if the transformer is newly built or replaced. The in vestment into a battery of around 630 MWh storage capacity from the same Shikoku example in volves in vestment costs of an order of 100 MEUR [39]. Even if additional benefits through increased self-consumption are included, the battery solution is an ef fectiv e, but enormously expensi ve option for av oiding transmission. V . C O N C L U S I O N This work quantified av oided transmission due to local re- new able power generation using the newly developed method of MPI-MPE curves that plot annual maximum po wer imports and exports as a function of installed renewable generation capacity . T wo case studies were analyzed, with varying PV size and battery capacity , and at two sample locations in Germany and Japan. It was found that av oided transmission can occur , depending on the specific set-up. W ithout battery , transmission can only be av oided at the considered location in Japan, assuming moderate PV penetration. In contrast, no transmission av oidance was observed in the analyzed German location. With the installation of batteries, ho wev er , av oided transmission was observed in both locations. This, howe ver , comes at quite high in vestment cost which is most probably not justified by achiev able cost savings from a voided transmission. The MPI-MPE diagram developed in this work prov ed to be an effecti ve and promising method to estimate av oided transmission ef fects. The approach can easily be applied to wider variety of load and generation profiles for dif ferent community set-ups of interest. The approach presented here relies on some simplifications which can lead to ov erestimating av oided transmission. Perfect foresight of both PV generation and load is assumed, ommitting the effects of uncertainty . Besides, the work presented here employed the load profile data of one specific year combined with av erage weather data, applied to a community with PV generation. Since the distri- bution pattern of load and solar irradiation peaks is different in each year , the degree of avoided transmission effect might be more precisely determined by using weather input data of sev eral years. Also, this study inv estigated the ef fect in only two communities. Applying the method to other communities with dif ferent configurations and input data w ould lead to more precise and general knowledge about the conditions of avoided transmission effects. Finally , adding the energy perspective of electricity exchange between the community and the public grid could provide insights that help ev aluating the value of battery storage better . Notwithstanding, the results of such more detailed studies could be very useful for policy makers and DSOs at the stage of infrastructure planning. R E F E R E N C E S [1] E. Kahn, “A voidable T ransmission Cost is a Substantial Benefit of Solar PV, ” Electricity Journal , vol. 21, no. 5, pp. 41–50, 2008. [2] F . Ueckerdt, L. Hirth, G. Luderer, and O. Edenhofer, “System LCOE: What are the costs of variable renewables?” Energy , vol. 63, pp. 61–75, 2013. IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 8 Fig. 9. MPI-MPE diagram for Case 2 in Erding and Shikoku with various battery-to-PV size ratios [3] J. V on Appen, J. H. Braslavsky , J. K. W ard, and M. Braun, “Sizing and grid impact of PV battery systems - A comparative analysis for Australia and Germany, ” in International Symposium on Smart Electric Distribution Systems and T echnologies , 2015, pp. 612–619. [4] R. Luthander , J. Wid ´ en, D. Nilsson, and J. Palm, “Photov oltaic self- consumption in buildings: A revie w, ” Applied Ener gy , vol. 142, pp. 80– 94, 2015. [5] G. Merei, J. Mosh ¨ ovel, D. Magnor, and D. U. Sauer, “Optimization of self-consumption and techno-economic analysis of PV -battery systems in commercial applications, ” Applied Energy , vol. 168, pp. 171–178, 2016. [6] F . Braam, R. Hollinger, C. L ¨ ubeck, S. M ¨ uller , and B. Wille-Haussmann, “Grid-Oriented Operation of Photov oltaic-Battery Systems Operat- ing Modes of Photovoltaic- Battery Systems, ” in International ETG- Congr ess , 2013. [7] J. Li and M. A. Danzer, “Optimal charge control strategies for stationary photov oltaic battery systems, ” Journal of P ower Sources , vol. 258, pp. 365–373, 2014. [8] L. Bol ´ ıvar Jaramillo and A. W eidlich, “Optimal microgrid scheduling with peak load reduction in volving an electrolyzer and flexible loads, ” Applied Ener gy , vol. 169, pp. 857–865, 2016. [9] K. B ¨ udenbender , M. Braun, S. Armin, D. Magnor, and J. Christian Mar- cel, “Improving PV -Integration into the Distribution Grid. Contribution of Multifunctional PV -Battery Systems T o Stabilised System Operation, ” in EU PVSEC , 2010. [10] S. Nykamp, M. Bosman, A. Molderink, J. L. Hurink, and G. J. M. Smit, “V alue of distributed storage – competition or cooperation of stakeholders?” IEEE T ransactions on Smart Grid , vol. 4, no. 3, pp. 1361–1370, 2013. [11] J. Zupan ˇ ci ˇ c, E. Laki ´ c, T . Medved, and A. F . Gubina, “Advanced Peak Shaving Control Strategies for Battery Storage Operation in Lo w V oltage Distribution Network, ” in 2017 IEEE Manchester P owerT ech , 2017. [12] Y . Riesen, C. Ballif, and N. W yrsch, “Control algorithm for a residential photov oltaic system with storage, ” Applied Energy , vol. 202, pp. 78–87, 2017. [13] C. V enu, Y . Riffonneau, S. Bacha, and Y . Baghzouz, “Battery Storage System Sizing in Distribution Feeders with Distributed Photov oltaic Systems, ” in IEEE Bucharest P owerT ech , 2009, pp. 1–5. [14] E. Klaassen, J. Frunt, and H. Slootweg, “ Assessing the impact of distributed energy resources on L V grids using practical measurements, ” in 23rd Interanational Confer ence on Electricity Distribution (CIRED) , 2015, pp. 1289–1/5. [15] W .-P . Schill, “Residual load , renewable surplus generation and storage requirements, ” Energy P olicy , vol. 73, pp. 65–79, 2014. [16] O. O. Ogbomo, E. H. Amalu, N. N. Ekere, and P . O. Olagbegi, “A revie w of photovoltaic module technologies for increased performance in tropical climate, ” Renewable and Sustainable Ener gy Reviews , vol. 75, no. March 2016, pp. 1225–1238, 2017. [17] S. Sato, K. Hashimoto, and K. T ajima, “Synthesis and photo- voltaic application of donoracceptor type copolymers containing 9- cyanomethylenefluorene deriv ati ves with chemically tunable electronic properties, ” Synthetic Metals , vol. 161, no. 13, pp. 1289 – 1298, 2011. [18] J. Silvente, G. M. Kopanos, E. N. Pistikopoulos, and A. Espu ˜ na, “A rolling horizon optimization framework for the simultaneous energy supply and demand planning in microgrids, ” Applied Energy , vol. 155, pp. 485–501, 2015. [19] PV Magazine, “Market overview large battery storage, ” https: //www .pv- magazine.de/marktuebersichten/grosse- batteriespeicher/, ac- cessed: Aug 2019. [20] A. Zeh and R. Witzmann, “Operational strategies for battery storage systems in low-voltage distribution grids to limit the feed-in power of roof-mounted solar power systems, ” Energy Procedia , vol. 46, pp. 114– 123, 2014. [21] M. Schneider, P . Boras, H. Schaede, L. Quurck, and S. Rinderknecht, “Effects of Operational Strategies on Performance and Costs of Electric Energy Storage Systems, ” Energy Pr ocedia , vol. 46, pp. 271–280, 2014. [22] International Energy Agency, “Snapshot of Global Photovoltaic Mar- kets, ” IEA, T ech. Rep., 2018. [23] European Union, “Context Indicator 10: Structure of the Economy, ” European Union, T ech. Rep., 2017. [Online]. A vailable: \ url { https: //ec.europa.eu/agriculture/cap- indicators/context/2017 en } [24] Shokosoken, “Structures of local economy and small companies (in Japanese), ” Shokosoken, T ech. Rep., 2015. [Online]. A v ailable: \ url { http://www .shokosoken.or .jp/chousa/youshi/27nen/27- 1.pdf } [25] Stadtwerke Erding GmbH, “Power grid, ” http://web.archi ve.org/web/ 20080207010024/http://www .808multimedia.com/winnt/kernel.htm, ac- cessed: Aug 2018. [26] Shikoku Electricity Power Company, “Load data, ” http://www .yonden. co.jp/denkiyoho/download.html, accessed: Aug 2018. [27] R. Lovelace, “Measured and Predicted Performance of a Photovoltaic Grid-Connected System in a Humid Subtropical Climate, ” Mechanical Engineering Theses, 2015. [Online]. A vailable: \ url { http://hdl.handle. net/10950/289 } [28] K. G. Regalado and C. N. Quispe, “Energetic Assessment of T wo Solar Cooling Systems in Piura using the TRNSYS Software, ” in W orld Congr ess on Engineering and Computer Science , no. October, 2016. [29] W . De Soto, S. A. Klein, and W . A. Beckman, “Improvement and validation of a model for photovoltaic array performance, ” Solar Energy , vol. 80, no. 1, pp. 78–88, 2006. [30] Deutscher W etterdienst, “Location-specific test reference years for Germany , ” https://www .bbsr.b und.de/BBSR/DE/FP/ZB/ Auftragsforschung/5EnergieKlimaBauen/2013/testreferenzjahre/ 01- start.html?docId=1595620¬First=true, accessed: Aug 2018. [31] New Energy and Industrial T echnology Development Or ganization, “So- lar irradiation database, ” http://www .nedo.go.jp/library/nissharyou.html, accessed: Aug 2018. [32] M. Joos and I. Staffell, “Short-term integration costs of variable renew- able energy: W ind curtailment and balancing in Britain and Germany , ” Renewable and Sustainable Energy Reviews , vol. 86, no. February 2017, pp. 45–65, 2018. [33] H. Klinge Jacobsen and S. T . Schr ¨ oder , “Curtailment of renewable generation: Economic optimality and incentives, ” Energy P olicy , vol. 49, pp. 663–675, 2012. [34] E. Wieben, M. Stadler, T . Luhmann, R. T reydel, and T . Kumm, “An Approach for Cost-Efficient Grid Integration of Distributed Renew able Energy Sources, ” Engineering , vol. 1, no. 4, pp. 447–452, 2016. [35] T . Bongers, J. Kellermann, M. Franz, and A. Moser, “Impact of curtail- ment of renew able energy sources on high voltage network expansion planning, ” 19th P ower Systems Computation Conference , 2016. [36] P . Wiest, S. Eberlein, K. Rudion, and A. Probst, “Comparison between static and dynamic curtailment of RES in probabilistic high-voltage dis- IEEE TRANSA CTIONS ON SUST AINABLE ENERGY (A CCEPTED VERSION) 9 tribution grid planning, ” in 24th International Conference and Exhibition on Electricity Distribution (CIRED) , 2017, pp. 2169–2173. [37] M. Rossi, G. V igan ` o, D. Moneta, D. Clerici, and C. Carlini, “Analysis of activ e po wer curtailment strategies for rene wable distributed generation, ” AEIT International Annual Conference , 2016. [38] A CER, “On unit investment cost indicators and corresponding reference values for electricity and gas infrastructure, ” A CER, T ech. Rep., 2015. [39] BloombergNEF, “A Behind the Scenes T ake on Lithium-ion Battery Prices, ” https://about.bnef.com/blog/ behind- scenes- take- lithium- ion- battery- prices/, accessed: Aug 2019.
